I shipped the first mothership admin UI extension this week: a Live page in the superuser dashboard for fleet counts, edge traffic, and session sparklines. The code path is fine. The surprise was Cloudflare.

What admin UI extensions are

PocketBase 0.37+ lets you extend the built-in superuser dashboard without a separate app. Two layers:

1. Server — a pb_hooks onServe hook registers a static directory as a UI extension.
2. Client — main.js in that directory runs in the browser and uses global window.app to add routes, header links, and pages.

On PocketHost mothership the layout looks like this:

pb_hooks/mothership.pb.js     ← tsdown bundle (registration hook)
pb_admin_ext/live/main.js     ← client plugin code
pb_admin_ext/live/style.css

PocketBase serves /_/extensions.js (concatenated plugin entry) and /_/extensions/{name}/* (static assets). The admin SPA loads /_/extensions.js after you sign in as superuser.

This is separate from JSVM hooks. Client main.js runs normal browser JavaScript. Hook registration runs in Goja.

How edges feed the Live page

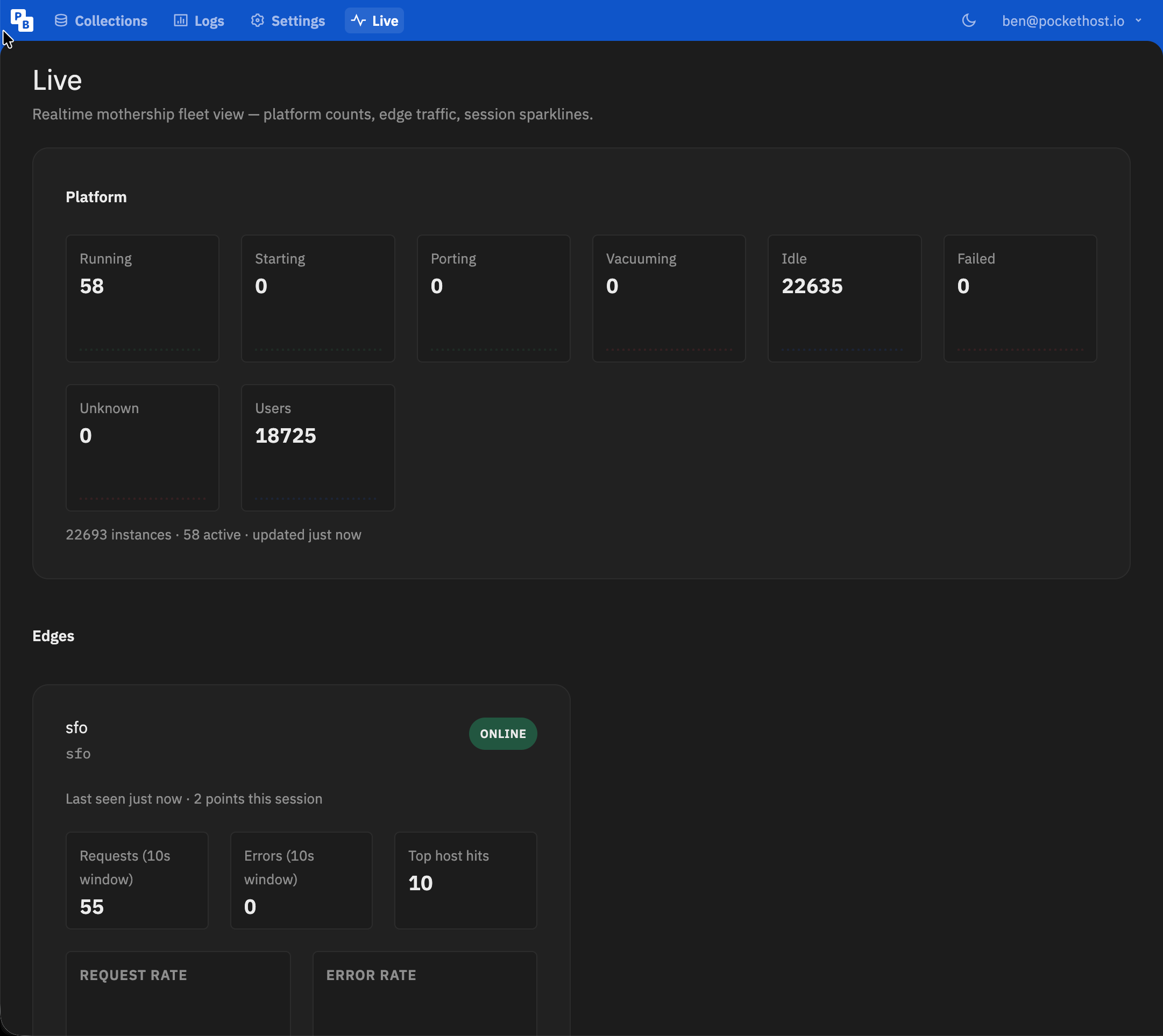

The platform counts at the top (running, idle, failed, users) are mothership aggregates. The Edges section is different. Each edge node reports its own traffic window into mothership, and the Live plugin renders it in realtime.

On the edge daemon, ProxyService counts every proxied request: totals, errors, and top hosts, IPs, and countries (from X-Forwarded-For and CF-IPCountry). Counters live in memory for the current window only.

Every 10 seconds (PH_EDGE_HEARTBEAT_MS), EdgeHeartbeatService snapshots that window, flushes the counters, and POSTs to mothership:

{
  "edge_id": "sfo",
  "label": "sfo",
  "stats": {
    "requests": 117,
    "errors": 0,
    "hosts": [["myapp.pockethost.io", 25], ...],
    "ips": [["203.0.113.1", 25], ...],
    "countries": [["US", 40], ...]
  }
}

edge_id defaults to the host hostname (PH_EDGE_ID). One record per edge in the mothership edges collection.

On mothership, POST /api/edge/heartbeat upserts that record: last_seen, status: online, and the stats JSON blob. A cron job runs every minute and downgrades edges with no heartbeat: stale after 30s, offline after 60s.

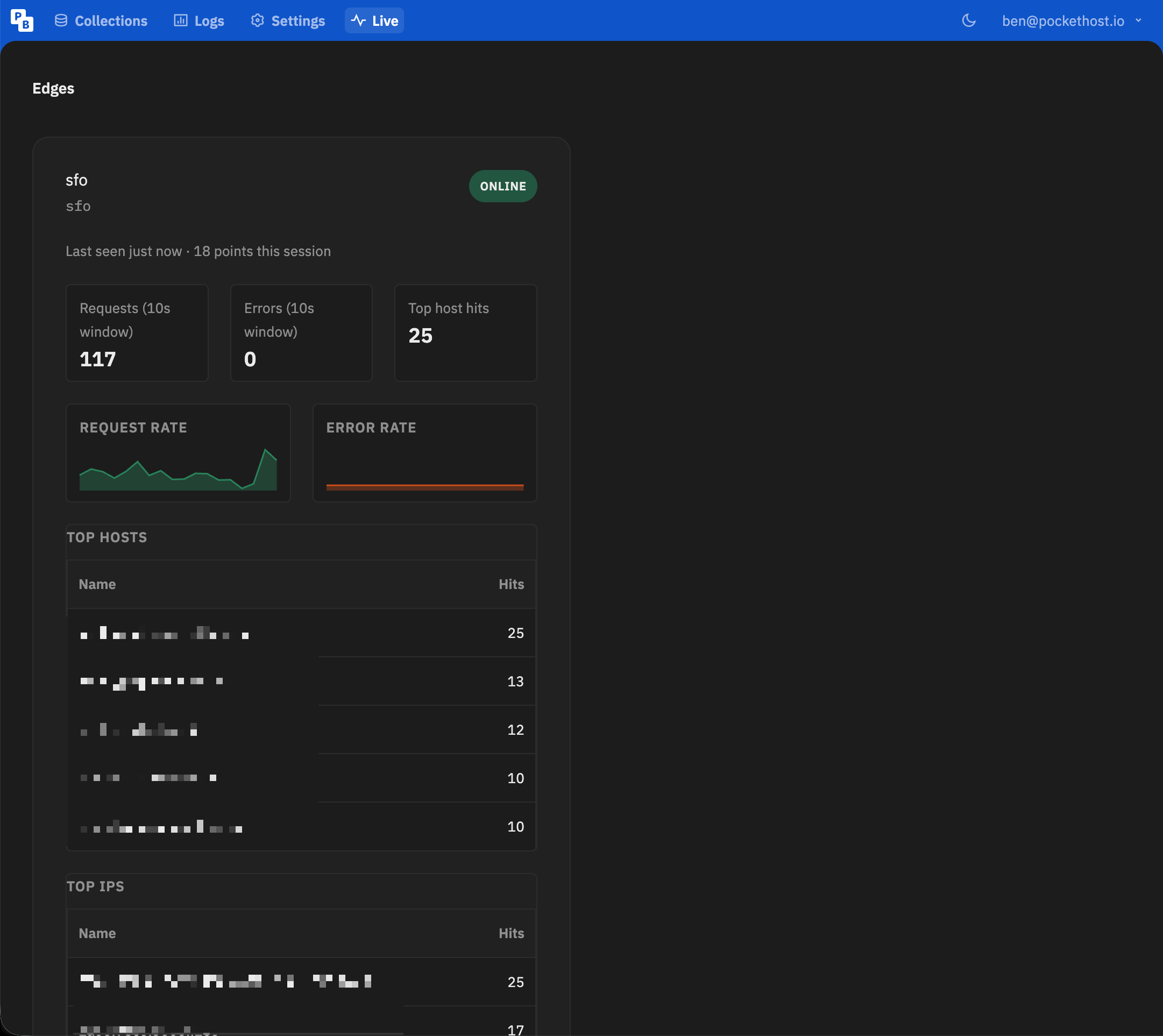

In the Live plugin, edges are the small collection that belongs on realtime (unlike 22k instances). On page load it getFullLists edges, then subscribe('*'). Each heartbeat patch appends a point to in-browser history for the request/error sparklines and refreshes the top-hosts, top-IPs, and top-countries tables. The headline numbers are always the latest 10s window from the edge.

The bug that looked like a missing plugin

Symptom: /_/extensions.js returned 200 with an empty body. No header link. No errors in mothership logs. The registration hook was in the bundle. main.js existed on disk. Local curl to :8090 returned the full script.

Production through Cloudflare did not.

Response headers told the story:

cf-cache-status: HIT
cache-control: max-age=1209600, stale-while-revalidate=86400
age: 6845

PocketBase sets a 14-day cache header on /_/* static routes in production. Cloudflare cached an empty /_/extensions.js from before the plugin existed and kept serving it.

The plugin was not broken. The CDN was faithfully doing its job on a response that should never have been long-lived.

The fix

A Cloudflare Cache Rule with Bypass cache for:

(http.request.uri.path eq "/_/extensions.js") or
(http.request.uri.path wildcard r"/_/extensions/*")

Both paths matter. /_/extensions.js is the bundle. /_/extensions/* is static assets. The wildcard does not match the .js file at the sibling path.

One purge of /_/extensions.js after saving the rule. Then hard refresh the admin UI.

I scoped the rule to the mothership hostname. Same pattern applies if you run admin plugins on a hosted instance behind Cloudflare.

Full step-by-step is in the Admin UI Extensions docs.

The second bug (429 storm)

Once the script loaded, the Live page immediately started hammering the API and hit 429 Too Many Requests.

Two causes stacked:

1. Route init ran on every reactive re-render, re-firing getList calls each time Shablon updated the page.
2. instances.subscribe('*') on a 22k-instance fleet fired constantly. Each burst triggered eight count queries (seven status filters + users).

Edges (small collection) belong on realtime. Platform-wide aggregates do not. I moved init to run once per page visit and poll platform counts every 30 seconds instead of listening to every instance patch.

If you build fleet-scale operator pages, treat admin extensions like any other dashboard: realtime for small sets, polling or incremental updates for aggregates.

Where this goes

Mothership is on PocketBase 0.39 now. Admin extensions are the path for operator tooling that used to live in SQL views or external scripts.

The Live page is the first one. More mothership plugins will follow (stats, growth, fleet health). Customer instances on ≥0.37 can use the same pattern via SFTP/phio.

If you ship admin plugins on PocketHost, read the Admin UI Extensions docs before you debug an empty /_/extensions.js. Check Cloudflare first.
